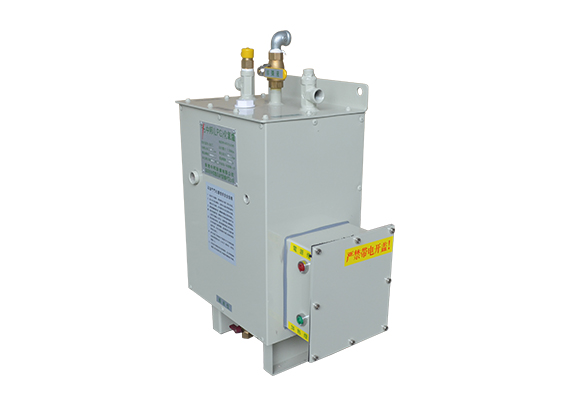

The outer shell of the explosion-proof box of the gasifier is made of Q235A steel plate welded.

The explosion-proof box of the gasifier is equipped with wiring terminals.

The gasifier is equipped with internal and external grounding bolts and a grounding mark "〨".

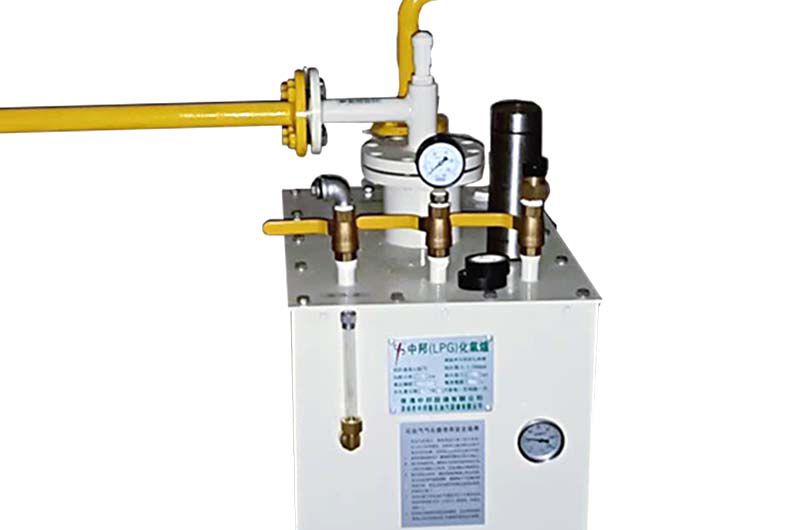

The gasifier is equipped with a water tank, a coil, and a heating tube. Its principle is that liquefied gas penetrates through the coil in warm water, absorbs the heat of warm water, gasifies and overheats, and inputs it into the pipeline network. The heat energy of warm water is provided by an electric heater, and the water temperature is controlled between 55 ℃ and 70 ℃.

The gasifier is equipped with a float switch to prevent low water level. When the water level drops below a certain height, it can automatically cut off the power supply to prevent the heater from dry burning.

The gasifier is equipped with an anti overheating device, which can automatically cut off the power supply when the water temperature exceeds 75 ℃, preventing the heater from dry burning and preventing excessive temperature.
