• The working voltage of the motor and power control board is 24V;

• Receive 4-20mA Angle command signal;


• Zero position and travel Angle can be adjusted;


• Constant torque output within the range of angular travel;


• Uptime is 39 seconds (90°);

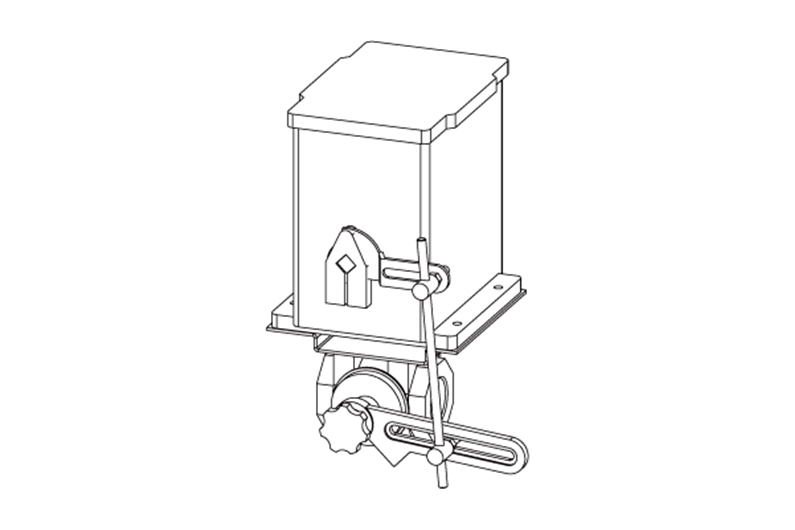

• Two-way mounting card slot;


• The motor has overload protection;


• Maximum output torque 20NM;


Service life

• 6000 full trips;


• 1.5 million reciprocating positioning;


Matters needing attention

• Wiring: This product can accept the external 220V AC power supply, the user in the wiring process, do not connect the 220V AC power supply to the low-voltage blue terminal inside the machine;


• Power supply: grey Brown: 220V AV;


Motor rotation direction

• Front opening: clockwise direction;


• Front closure: counterclockwise direction;


• Back open: counterclockwise direction;


• Back closed: clockwise direction;


Electrical characteristic

• Input current range :4-20mA;


• Maximum input current: 25mA;


• When the input current is less than 2.5mA, it is completely closed.


• Input impedance :100Ω;
