产品特点

Product Features

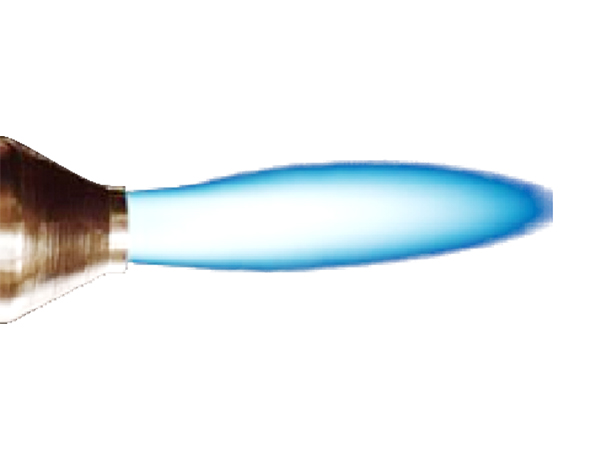

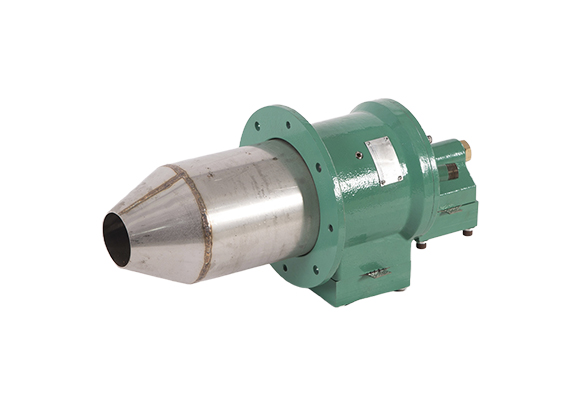

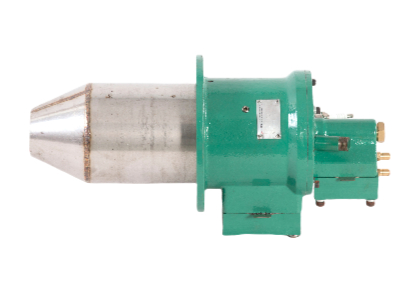

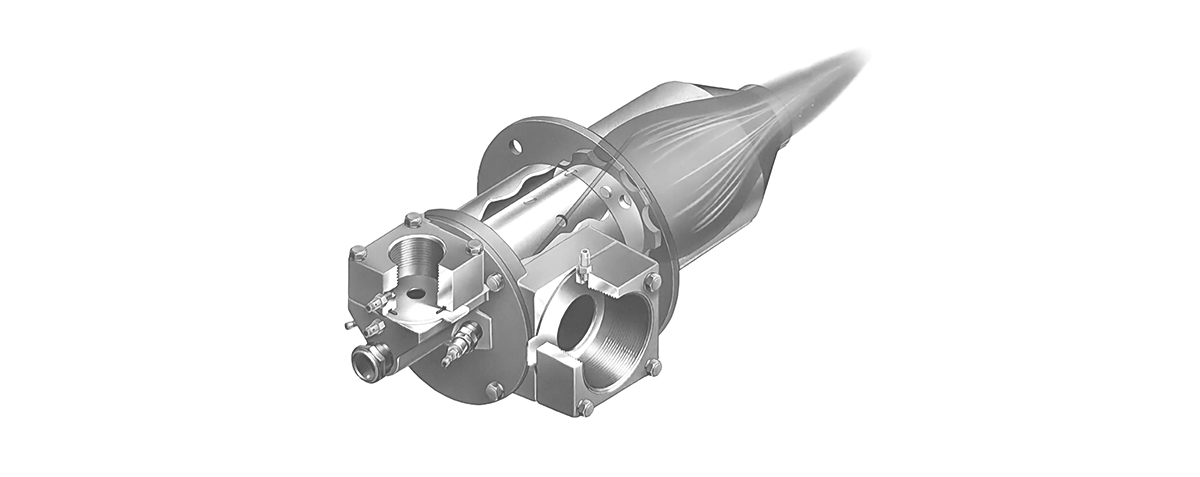

JSB is a nozzle mixture type burner designed to use ambient combustion air through a combustion chamber to burn a strong, high-temperature airflow. The high speed of the gas improves temperature uniformity, product quality and system efficiency.

JSB burners are available in two models:

High Speed (HV) type: up to 500 ft/s(152 m/s)

Medium speed (MV) model: up to 250 ft/s(125 m/s)

The JSB series can also use combustion air at temperatures up to 315 ° C.

Power adjustment ratio 50:1.

Type of fuel available: natural gas, LPG or diesel.

Power output ranges from 37,500 kcal/hour to 2.5 million kcal/hour.

Maximum furnace temperature 1530℃.

Typical industrial applications: Commonly used in metal annealing furnace, metal melting furnace, incinerator, small glass kiln, ceramic kiln, fluidized bed dryer and other industrial applications.

Product Parameters

model	Visible flame length during fire, inches(mm)¹						Appropriate flame speed，ft/s(m/s)²		Maximum heat generation Btu/h(kW) 1	Minimum heat generation Btu/h(kW) 1
	high speed			Medium speed			high speed	Medium speed
	natural gas	propane	butane	natural gas	propane	butane	high speed	Medium speed
JSB0015	9.0(229)	9.0(229)	9.0(229)	11.0(279)	10.0(254)	11.0(279)	440(134)	270(82)	150,000(40)	3,750(1)
JSB0025	12.0(305)	12.0(305)	13.0(330)	14.0(356)	14.0(356)	14.0(356)	440(134)	260(79)	250,000(67)	6,250(2)
JSB0040	14.0(356)	17.0(432)	17.0(432)	18.0(457)	19.0(483)	19.0(483)	540(165)	320(98)	400,000(107)	10,000(3)
JSB0050	25(635)	33(838)	30(762)	28(711)	36(914)	39(991)	540(165)	320(98)	500,000(133)	10,000(3)
JSB0075	28(711)	30(762)	33(838)	28(711)	38(965)	38(965)	480(146)	250(76)	750,000(200)	15,000(4)
JSB0100	33(835)	34(865)	35(890)	38(965)	37(940)	42(1065)	630(192)	310(95)	1,000,000(267)	20,000(5)
JSB0150	38(965)	42(1065)	43(1090)	43(1090)	42(1065)	44(1120)	680(207)	350(107)	1,500,000(400)	30,000(8)
JSB0200	34(864)	36(914)	36(914)	38(965)	38(965)	38(965)	500(152)	330(101)	2,000,000(533)	40,000(11)
JSB0300	50(1270)	55(1400)	55(1400)	64(1630)	66(1675)	68(1730)	550(168)	300(91)	3,000,000(800)	60,000(16)
JSB0500	75(1900)	90(2285)	85(2160)	100(2550)	100(2550)	105(2670)	580(177)	280(85)	5,000,000(1333)	100,000(26)
JSB1000	124(3150)	139(3531)	134(3404)	149(3785)	149(3785)	154(3912)	380(116)	280(85)	10,000,000(2666)	200,000(53)
JSB1500	84(2134)	108(2743)	108(2743)	149(3660)	185(4700)	185(4700)	560(171)	180(55)	15,000,000(4000)	300,000(79)
JSB2000	84(2134)	108(2743)	108(2743)	168(4267)	216(5486)	216(5486)	540(165)	250(76)	20,000,000(5333)	400,000(106)
data	1. Measured from the outlet end of the combustion chamber; 2. Approximately 15% excess air at maximum input.
premise	1. All information is based on laboratory tests in a neutral (0 inch water column, 0 millibar) pressure furnace. Different furnace conditions may affect these data. 2. All information is based on standard combustion chamber design. The changes in the combustion chamber will alter performance and pressure. 3. All inputs are based on standard conditions: 1 atmospheric pressure, 20 ℃.

a design chart

DOWNLOAD

Jet type series - JSB

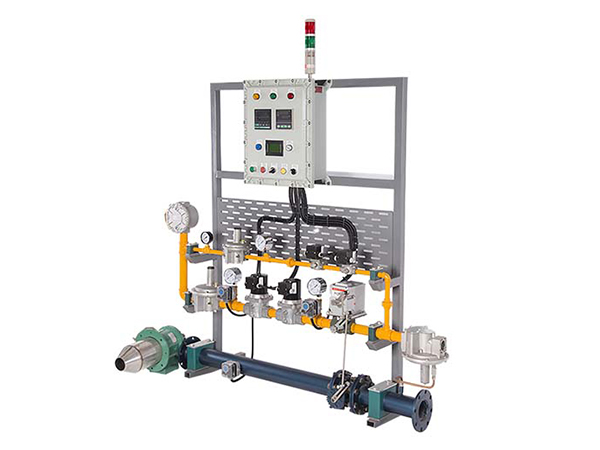

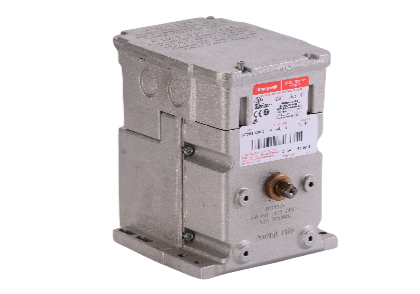

Accessory
