产品特点

Product Features

Compact structure: gas and air control device, detection device and igniter device combined.

Combustion stability: the burner adopts the nozzle air mixing mode, so it will not produce the phenomenon of backfire, and can get stable combustion in a wide range.

Large adjustment ratio: The burner can obtain a large adjustment ratio.

Combustion regulation is easy: just adjust according to the indicated pressure.

Maintenance is simple and convenient: it can be opened directly from the outside to replace the burner, igniter, detection rod and air mixing nozzle.

Product Parameters

Model	Using gas	Pressure difference of combustion air	Maximum combustion capacity	Minimum combustion capacity	Mother flame combustion capacity	Gas inlet pressure	Gas head pressure	Air capacity	Air ratio
Model	Using gas	kPa	×104kcal/hr(kW)	×104kcal/hr(kW)	×104kcal/hr(kW)	kPa	kPa	m3/min	Air ratio
GCB-300	LPG(100MJ)	0.50	17.6(204.7)	2.9(33.7)	0.7(8.1）	0.46	0.38	4.1	1.4
		0.75	21.5(250.0)	3.2(37.2)	0.7(8.1）	0.70	0.56	5.0	1.4
		1.00	25.8(300.0)	3.5(40.7)	0.8(9.3）	0.90	0.77	6.0	1.4
		1.25	28.0(325.6)	3.8(44.2)	0.8(9.3）	0.98	0.90	6.6	1.4
		1.50	31.7(368.6)	4.0(46.5)	0.9(10.5)	1.26	1.16	7.4	1.4
		1.75	34.3(398.8)	4.2(48.8)	1.0(11.6)	1.44	1.30	8.0	1.4
		2.00	35.6(414.0)	4.3(50.0)	1.0(11.6)	1.56	1.41	8.3	1.4
		2.25	37.8(439.5)	4.5(52.3)	1.1(12.8)	1.72	1.55	8.8	1.4
		2.50	40.0(465.1)	4.9(57.0)	1.2(14.0)	1.90	1.70	9.3	1.4
	LNG/NG(46MJ)	0.50	16.4(190.7)	2.0(23.3)	0.8(9.3）	0.22	0.18	3.8	1.4
		0.75	20.3(236.0)	2.1(24.4)	0.8(9.3）	0.33	0.26	4.8	1.4
		1.00	24.6(286.0)	2.3(26.7)	0.9(10.5)	0.47	0.35	5.8	1.4
		1.25	27.5(319.8)	2.5(29.1)	0.9(10.5)	0.57	0.44	6.4	1.4
		1.50	30.9(359.3)	2.7(31.4)	0.9(10.5)	0.72	0.56	7.2	1.4
		1.75	33.3(387.2)	3.0(34.9)	1.0(11.6)	0.84	0.62	7.8	1.4
		2.00	35.6(414.0)	3.2(37.2)	1.1(12.8)	0.95	0.71	8.3	1.4
		2.25	37.2(432.6)	3.4(39.5)	1.2(14.0)	1.04	0.78	8.7	1.4
		2.50	40.0(465.1)	3.6(41.9)	1.2(14.0)	1.22	0.91	9.3	1.4

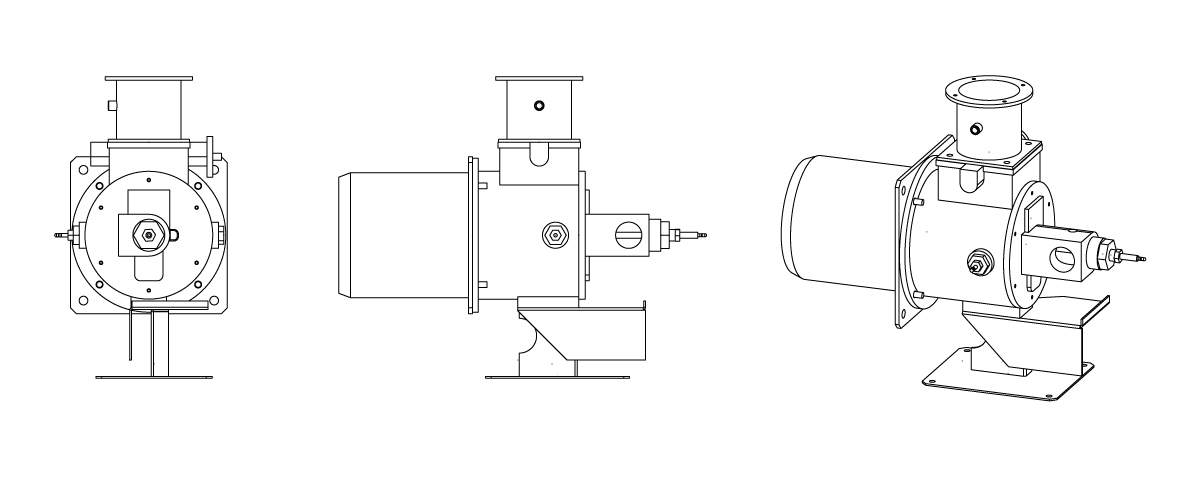

a design chart

DOWNLOAD

Combination Series GCB

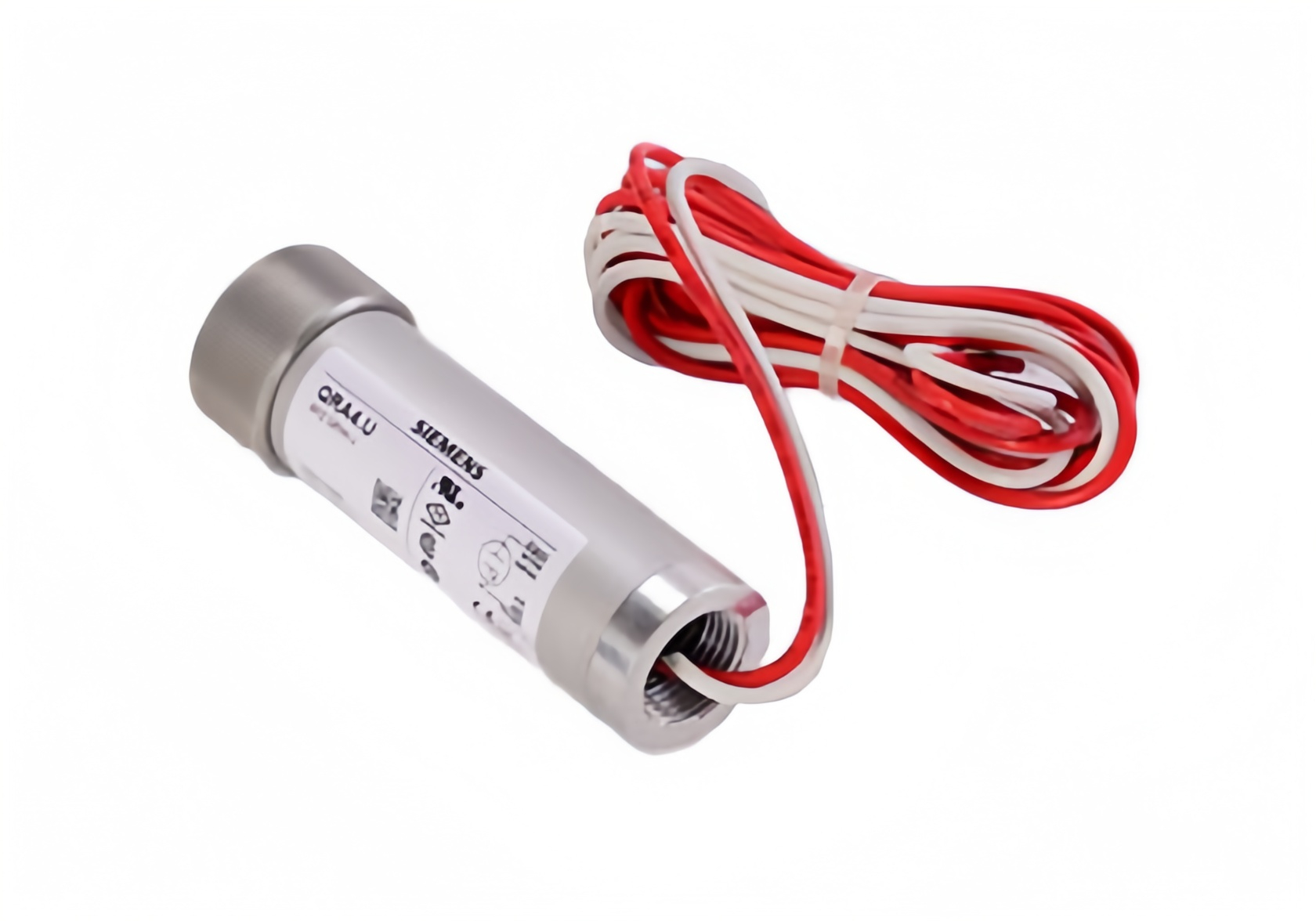

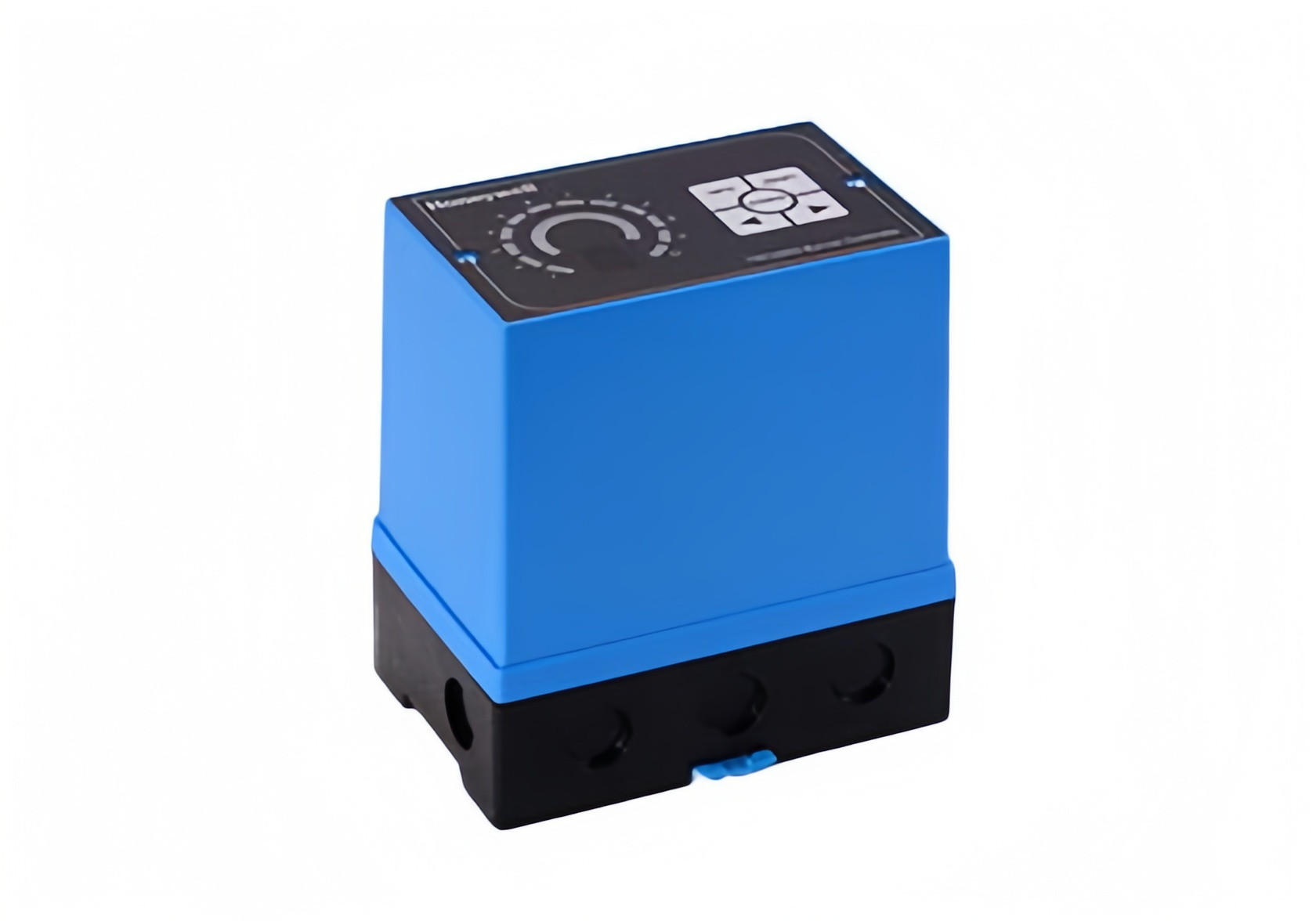

Accessory
